Waldur Integration

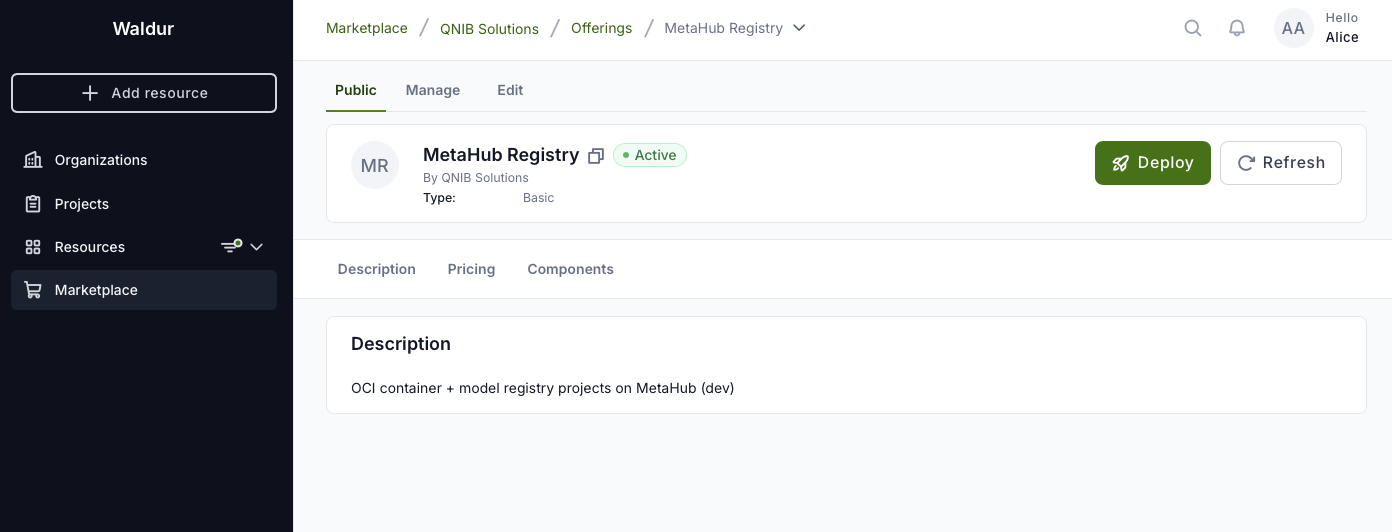

MetaHub plugs into Waldur as a self-service registry offering: a user orders a MetaHub Registry Project from the Waldur marketplace and gets a ready-to-use, quota-bounded namespace on the shared MetaHub instance — no tickets, no manual registry admin.

There is one shared MetaHub (one engine, one graph, one content-addressed blob store with global dedup). A Waldur project does not get its own registry; it configures a namespace prefix + a storage quota + an access policy on the shared instance. The mapping is by construction:

Waldur	→	MetaHub
Customer customer-slug	→	namespace org segment <org>
Project project-slug	→	namespace <org>/<project> (the MetaHub project)
Order limit storage (GB)	→	project quota_bytes (1 GB = 1 GiB)
Project members (SSO)	→	Authentik groups → pull/push authorization

Placeholder — replace with a screenshot (docs/assets/screenshots/waldur-marketplace-offering.png).

The lifecycle loop

The site-agent automates a small, well-defined loop between Waldur, MetaHub and Authentik:

Mode	Trigger	What happens
order_process	a create/update/terminate order	upsert the MetaHub project <org>/<project> with the ordered quota + visibility; delete on terminate
report	periodic	read MetaHub usage and post it as the Waldur storage component usage
membership_sync	project membership change	reconcile project members into the namespace's Authentik groups (add and remove)

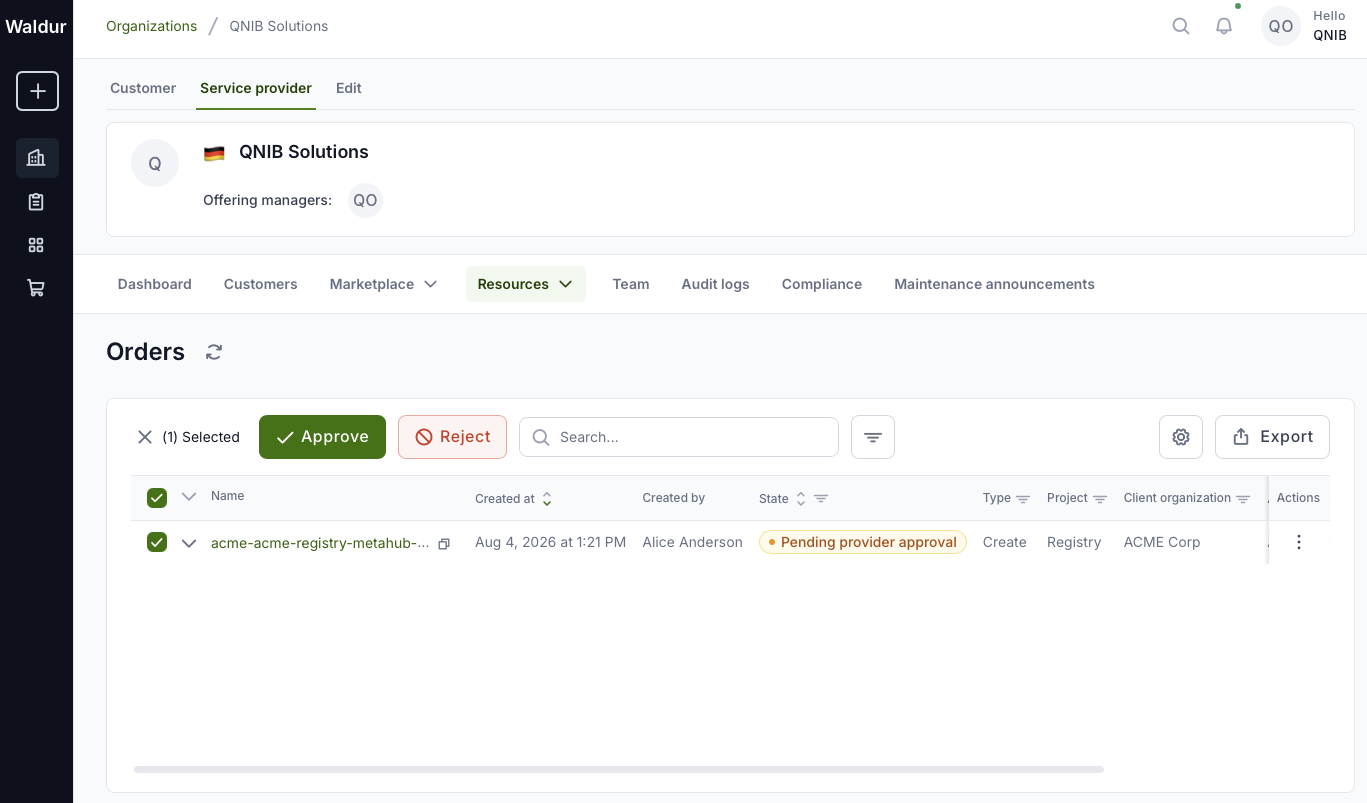

1. Order → provision

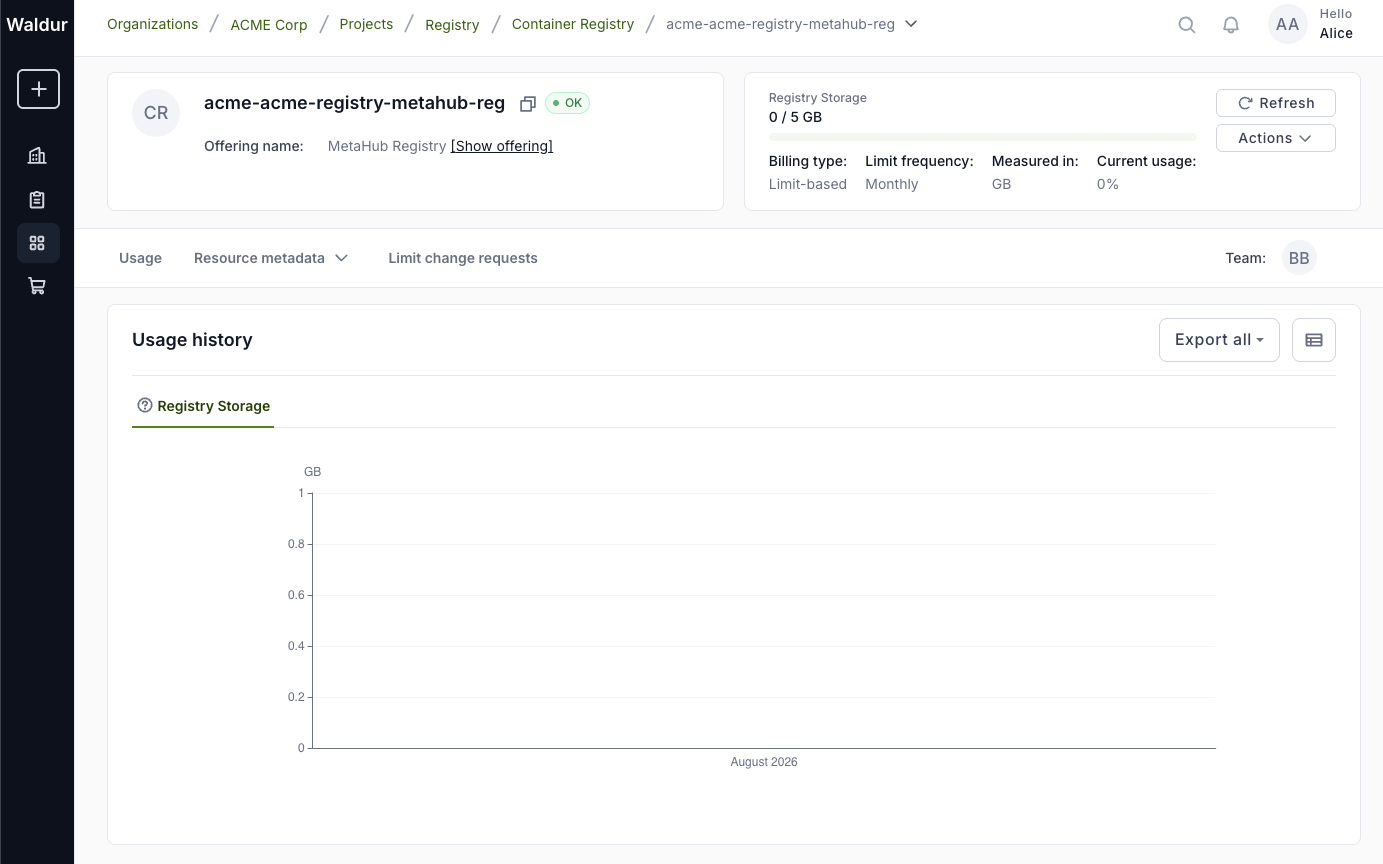

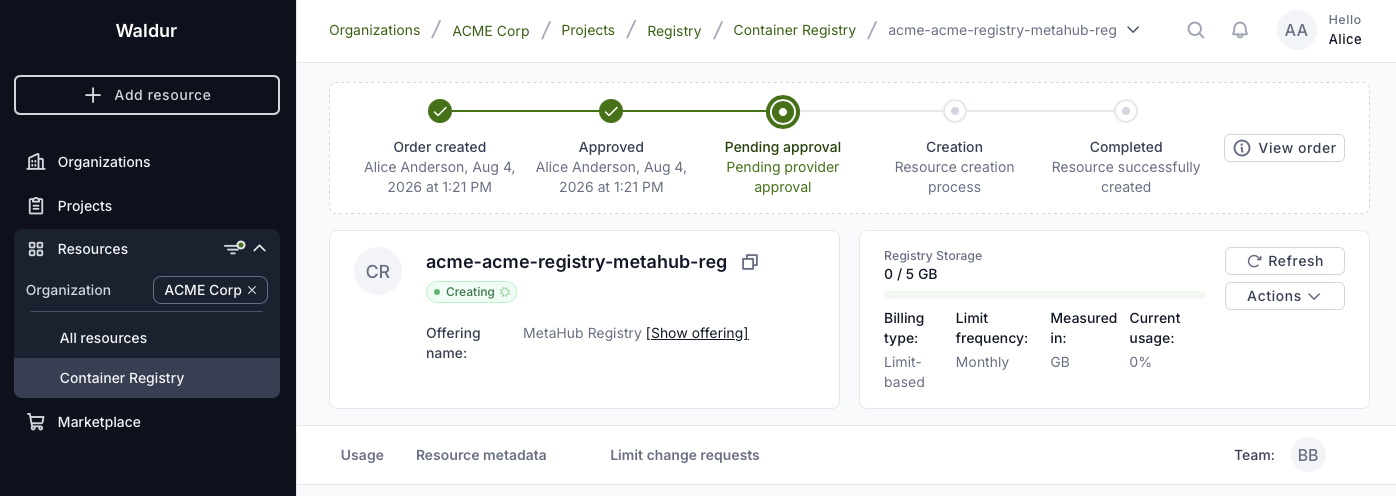

Ordering the offering sets the storage quota (in GB). On approval the site-agent provisions the namespace and applies the quota — idempotently, so a repeat order for an already-provisioned namespace just re-asserts quota/visibility rather than minting a second namespace (≤ 1 registry namespace per Waldur project).

Placeholder — replace with a screenshot (docs/assets/screenshots/waldur-order-form.png).

Under the hood the agent calls the MetaHub admin API:

POST /api/v1/protected/projects
{ "team_slug": "<org>", "project_slug": "<project>", "quota_bytes": <GiB×2^30> }

2. Push & pull

Users authenticate to the registry with their Authentik identity (OIDC) and push or pull under the namespace like any OCI registry:

docker login <registry> -u <user> -p <app-password>
docker push  <registry>/<org>/<project>/<image>:<tag>

Reads and writes are authorized against the project's Authentik groups; the storage consumed counts against the project quota.

Logical, deduplicated storage

Blobs are stored once globally (content-addressed). A project's usage is the sum of the distinct blob sizes reachable from its manifests — so a project is charged fully for what it references, while identical bytes shared across projects are physically stored a single time.

3. Quota & usage

Each project has a quota_bytes budget; a push that would take the project's logical usage over quota is rejected. Current usage is read from the admin API:

GET /api/v1/protected/projects/<org>/<project>/usage
→ { "usage_bytes": 4092947, "quota_bytes": 107374182400 }

Placeholder — replace with a screenshot (docs/assets/screenshots/metahub-project-usage.png).

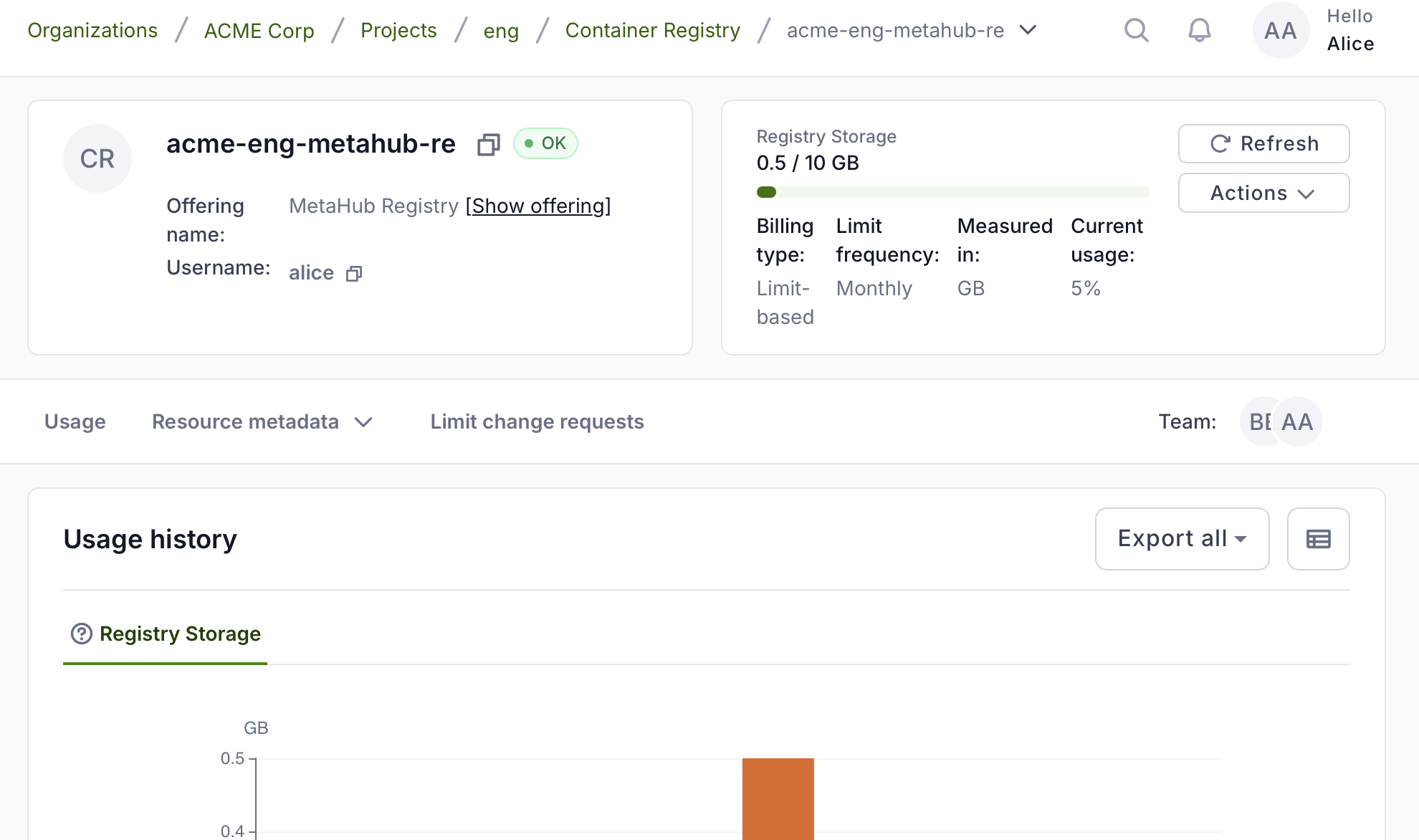

The report mode converts usage bytes → GB (2 decimals) and posts it to Waldur, where it appears on the resource as current_usages / limit_usage for the storage component — closing the accounting loop.

Placeholder — replace with a screenshot (docs/assets/screenshots/waldur-resource-usage.png).

4. Per-user usage attribution

Beyond the project total, MetaHub attributes usage to the individual pushers, de-duplicated at push. Each blob's size is split equally among the distinct users who pushed a manifest referencing it. If Alice pushes a 500 MB image and Bob later pushes the same image, the project total grows by 500 MB once, and each user is charged 250 MB.

GET /api/v1/protected/projects/<org>/<project>/usage?by=user
→ { "usages": { "alice": 1815466.5, "bob": 1815466.5 }, "quota_bytes": 1073741824 }

Placeholder — replace with a screenshot (docs/assets/screenshots/metahub-per-user-usage.png).

Reconciliation & the unknown bucket

The sum of the per-user shares plus a reserved unknown bucket always equals the project total. unknown holds bytes with no attributable pusher — compute-generated artefacts (model repackaging/injection) or pushes recorded before per-user tracking. The site-agent reports the real users to Waldur and drops unknown (that remainder stays implicit in the account total).

Automation: the site-agent

A dedicated waldur-site-agent backend (metahub) runs the loop above on a schedule: order_process (provision + quota + visibility), report (usage → Waldur, including the per-user breakdown), and membership_sync (Waldur members → Authentik groups). MetaHub itself needs nothing extra for membership — it reads the groups claim from the OIDC token; the agent owns group lifecycle in Authentik.
